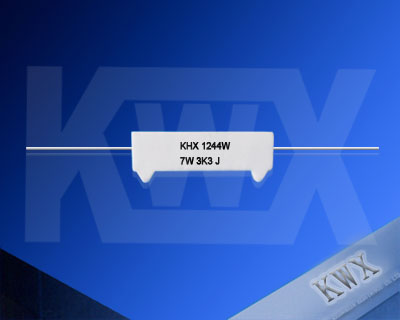

Product Name:SQA Ceramic Resistor
Product No:156

download attachments PDF: SQA Ceramic Resistor SQA

Added time:2015/10/27
Views:
Description

㈠Features:

  Ⅰ.Compact type with safety design of non-flammability and insulation
  Ⅱ.Stable long life

  Ⅲ.Low inductance is available
  Ⅳ.Products meet Eu-RoHS.

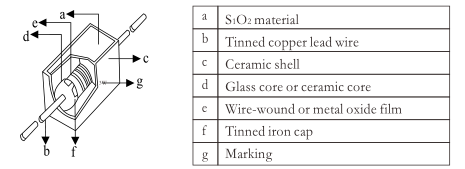

㈡Construction:


㈢Power Rating:
   SQA 3W、5W、7W、10W 、15W、20W、22W、25W
㈣Tolerance:
   J±5%、F±1%、G±2%
㈤Resistance Range:
   Metal oxide film type:100~100K     Wire wound type: 0.1~40K
㈥T.C.R.:

   Metal oxide film±350PPM/℃         Wirewound type±100PPM/℃
