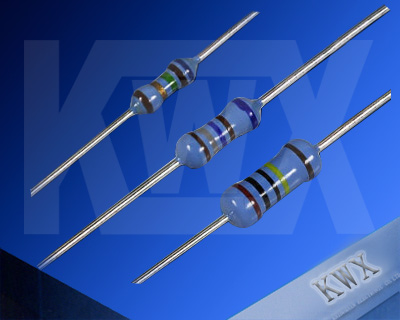

Product Name:MFP Precision Resistors
Product No:002

download attachments PDF: MFP Precision Resistors MFP

Added time:2015/10/21
Views:
Description

㈠Features:
 Ⅰ High precision, high stability.
  Ⅱ Low noise coefficient.
  Ⅲ Excellent high frequency characteristic
  Ⅳ High thermal conductivity.

㈡Constructions





A.Insulation Coating (Expose resin) B.Trimming Line    C.Ceramic Rod (Alumina ceramic)

    D.Electrode Cap (Tinned iron cap)   E. Resistor Layer (Nickel alloy)F. Marking (Expose)

    G.Lead Wire (Tinned annealed copper wire)

㈢Power Rating:

    MFD:1/8W  1/4W  1/2W  1W  2W

㈣Tolerance:

   P=±0.02%、W=±0.05%、B=±0.1%、D=±0.5%、F=±1%

㈤TCR(PPM/℃):

   C8=±3ppm/℃; C7=±5ppm/℃;C6=±10ppm/℃;C5=±15ppm/℃;C4=±20ppm/℃;
