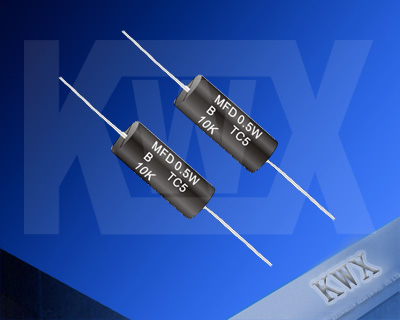

Product Name:MFD Metal Film Resistors
Product No:005

download attachments PDF: MFD Metal Film Resistors MFD

Added time:2015/10/21
Views:
Description

Features:

ⅠPower Rating:0.125W-1W

ⅡPrecision tolerance tight to±0.02%

ⅢPrecision metal film ,excellent stability and reliability

ⅣSuperior electrical TCR performance narrowed to±5PPM/℃

Ⅴlead (Pb)-free and RoHS compliant ,Covers all genraltype resistors

Applications:

ⅠMedical electronics.

ⅡTelecom

ⅢMeasuring and calibration equipment.

ⅣPrecision instruments avionics.

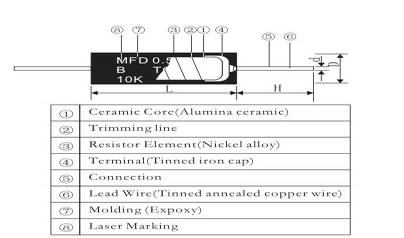

Constructions:


㈣Power Rating: 1/8=1/8W、1/4=1/4W、1/2=1/2W、3/4=3/4W、1=1W
㈤Tolerance: P=±0.02%、W=±0.05%、B=±0.1%、D=±0.5%、F=±1%
㈥TCR:C8=±3ppm/℃; C7=±5ppm/℃;C6=±10ppm/℃;C5=±15ppm/℃;C3=±25ppm/℃;
