Home > Products Category > Resistors > Wirewound Resistors > KNP Wire-wound Resistors

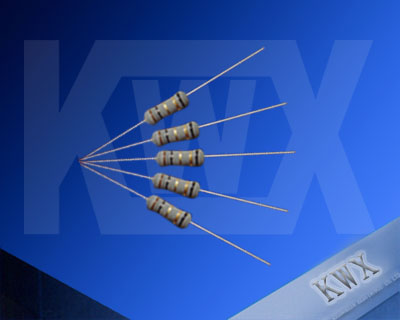

Product Name:KNP Wire-wound Resistors
Product No:021

download attachments PDF: KNP Wire-wound Resistors KNP

Added time:2015/10/23
Views:
Description

㈠Features:
  Ⅰ Flameproof and insulating coating designed to assure safe using by
     special non-flammable silicon-base.(Eqyuvakebt to UL94V-0)
  Ⅱ Good heat-durability, low temperature coefficient , low noise, high
     overload power
  Ⅲ High stability , long life
  Ⅳ Products meet Eu-RoHS.

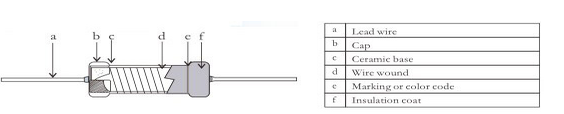

㈡Constructions:

㈢Power Rating:

  KNP:1/4W,1/2W,1W,2W,3W,4W,5W,6W,7W,8W,9W,10W,

      12W,15W,18W,20W,25W,30W,35W,40W。

㈣Tolerance:

  F±1% J±5%

㈤TCR:

  ≥10Ω±30PPM/℃, 1~9.9Ω±50PPM/℃,  0.1~0.99Ω100PPM/℃
  0.05~0.099Ω300PPM/℃,   0.01~0.049Ω600PPM/℃
