Home > Products Category > Resistors > High Power Resistors > KNG Painted High Power Ceramic Tube
Product Name:KNG Painted High Power Ceramic Tube
Product No:065

download attachments PDF: KNG Painted High Power Ceramic Tube KNG

Added time:2015/10/28
Views:
Description

㈠ Features:

  Ⅰ.Surface painted,wide power range
  Ⅱ.Excellent high temperature load performance
  Ⅲ.Full-welded structure
  Ⅳ.High reliability
  Ⅴ.Imported grey and green coating , charactor
     marking assembly and fittings(available)
  Ⅵ.Resistance tolerance:±1%、±2%、±5%、±10%

㈡Application:

  Ⅰ.Mostly used in large power supply
  Ⅱ.Electricity equipment
  Ⅲ.Electrical equipment
  Ⅳ.Locomotive

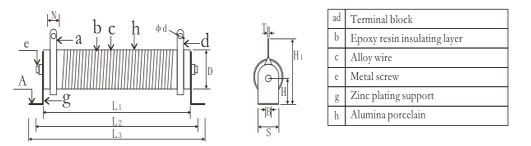

㈢Constructions:



Power Rating:
  10W,50W,100W,300W
Tolerance:
  J=±5%、K=±10%
Resistance Range:
  1Ω~150KΩ
㈦T.C.R.:
  ±350PPM/℃
