Home > Products Category > Resistors > High Voltage Resistors > HVZ High Voltage Resistors
Product Name:HVZ High Voltage Resistors
Product No:230

download attachments PDF: HVZ High Voltage Resistors HVZ

Added time:2015/10/26
Views:
Description

㈠Features:

   Ⅰ The product surface with solid wave type, which will help to reduce the stray inductance

      and withstand high current surge.
   Ⅱ Good overload and heat durability capacity , the useful time is longer than the others.
   Ⅲ Resistance tolerance :±5%、±10%

㈡Applications:

 ⅠImpulse voltage generator
 ⅡElectric-arc furnace damping,
 ⅢPulse modulator, radar pulse opens the network
 ⅣArc suppression circuit of capacitor, high voltage buffer circuit
 ⅤX-ray/head portrait equipment and EMI/ lightning suppression

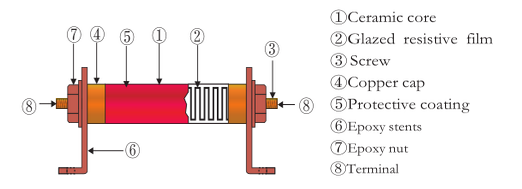

Constructions:


Power Rating:

   20W,25W,30W,50W,80W,100W,150W,200W,300W,400W,500W.600W,800W,1000W

Tolerance:

  F(±1%),G(±2%),J(±5%),K(±10%)

Resistance Range:

   1.0K-1000G(Ω)

㈦TCR:

  ±100ppm/℃
