Product Name:HVS Wire Wound Resistor
Product No:154

download attachments PDF: HVS Wire Wound Resistor HVS

Added time:2015/10/26
Views:
Description

㈠Features:

  Ⅰ.Flameproof and insulating coating designed to assure safe usage by
     special non-flammable silicon-base.(Eqyuvakebt to UL94V-0).
  Ⅱ.Good heat-durability, low temperature coefficient , low noise, high
     overload power.
  Ⅲ. Stable long service life.
  Ⅳ.Products meet Eu-RoHS.
  Ⅴ.Response to pulsed high voltage circuit, with excellent performance.

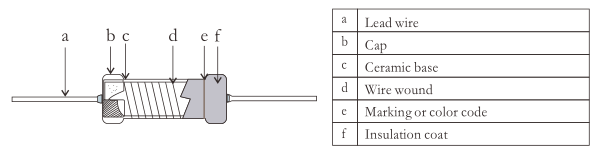

㈡Construction:


㈢Power Rating:
   HVS 1/4W、1/2W、1W、2W、3W、5W、6W、7W、8W、9W、10W、12W、15W、18W、20W、

   25W、30W、35W、40W
㈣Tolerance:
   J=±5%
㈤Resistance Range:
   0.1~100KΩ
㈥T.C.R.:

   ≥10Ω±100PPM/℃,  1Ω~9.9Ω±150PPM/℃,   0.1Ω~0.99Ω±200PPM/℃
   0.05Ω~0.099Ω±350PPM/℃,  0.01Ω~0.049Ω±600PPM/℃
