Product Name:HVB Ceramic Resistors
Product No:197

download attachments PDF: HVB Ceramic Resistors HVB

Added time:2015/10/26
Views:
Description

㈠Introduction:

   Ⅰ KWX’s HVB Resistor series are  primarily designed for high volt-
     age,power charging/discharging  circuits,surge energy applications
     and conform to RoHS directive and lead-free.
   Ⅱ For customed designs,tighter tolerances,non-standard technical re-
      quirements,or custom special applications,please contact our sales
      for more information.
   Ⅲ The HVB is perfect for medical defibrillators.

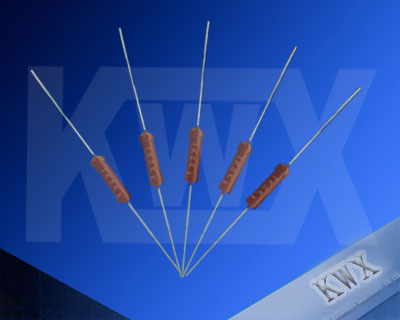

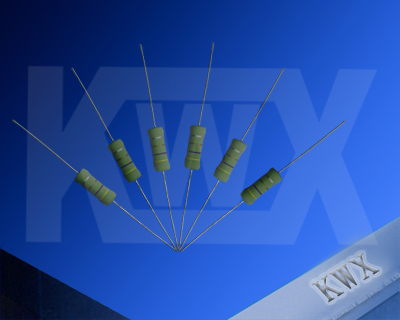

   Ⅳ Surface insulation optional palm red or green.
   Ⅴ Compared with HVA,the HVB offers more choices for customer.

㈡Features:

  Ⅰ Special  ceramic resistor , was made of Clay , Silicon dioxide and

     Porcelain cement   ,After sintering under high temperature and high

     voltage , the resistor core was build ,then take the insulation coating.
  Ⅱ Saver than the wire-wound resistor and film resistor , which will avoid

     the wire disconnecting and the film breaking up .
  Ⅲ High peak power can be reached at 5KW-30KW in short time.
  Ⅳ Good performance in bearing high voltage and high current.
  Ⅴ Products meet the RoHS requirments.

㈢Applications:

 Ⅰ Radar,Motor Drives, Broadcast Transmitters.
 Ⅱ X-Ray equipment ,Lasers,Medical Defibrillators.
 Ⅲ Dynamic Braking, Soft-start/Current-limit equipment.
 Ⅳ Snubber Circuits, Dummy Loads, Energy Research field..
 Ⅴ RF Amplifiers,Semiconductor Process,Power Conditioning.

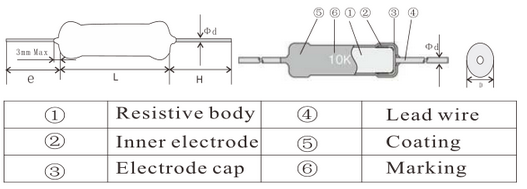

Constructions:


Power Rating:
  HVB :0.5W、1W,2W,3W,4W,5W
Tolerance::
  F=±1%、G=±2%,J=±5%、K=±10%
Resistance Range:
  K:±10%E12:410-390K       M:±20%E6:3.3-330K
㈧T.C.R:(X10-6/K)

  -900±300:R<100Ω-1200±300:R≥100Ω
